Motor, Transmission and Cooling

Diesel Exhaust Overall

Diesel Exhaust 1

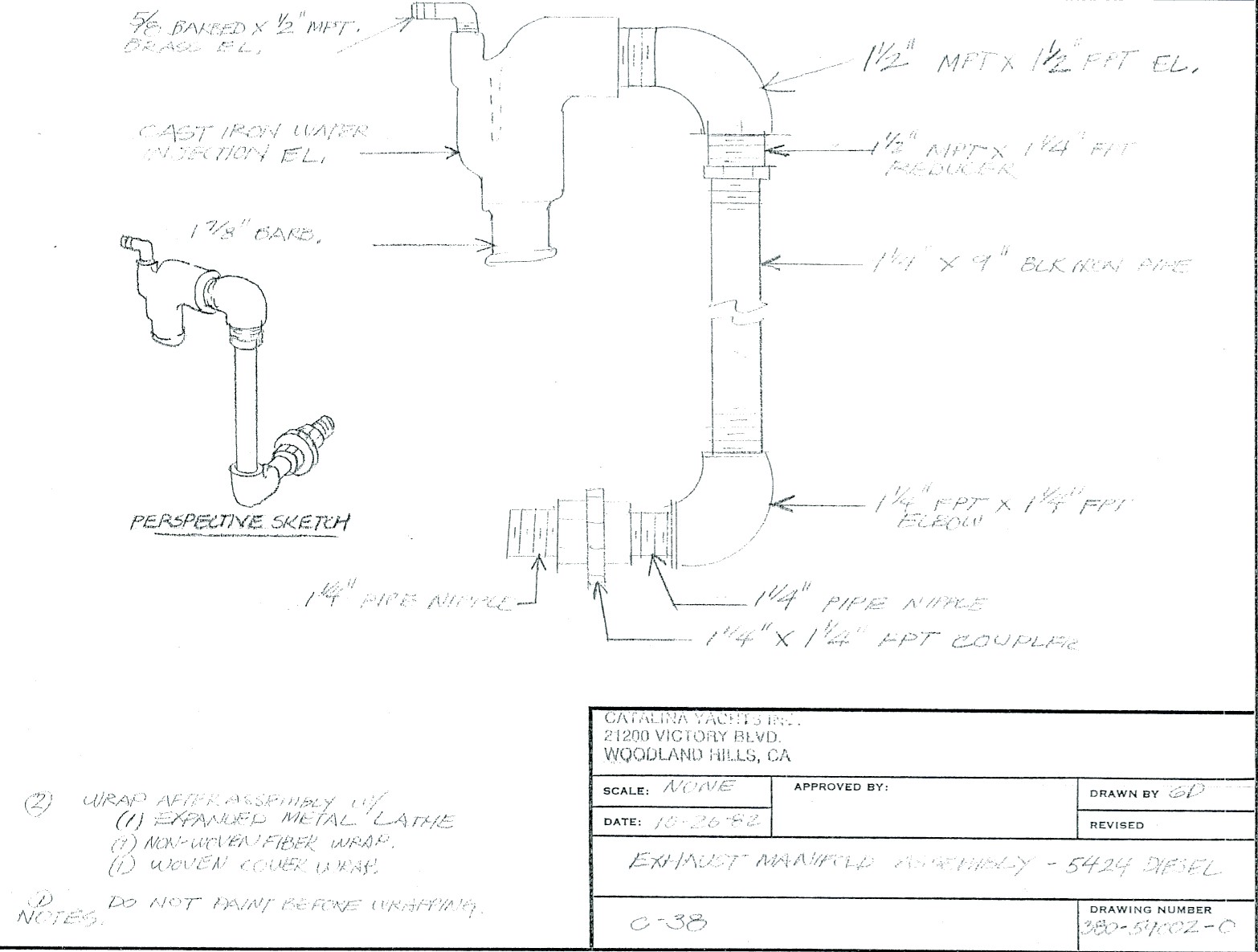

Diesel Exhaust 2

Engine Fresh Water System

Heat Exchanger

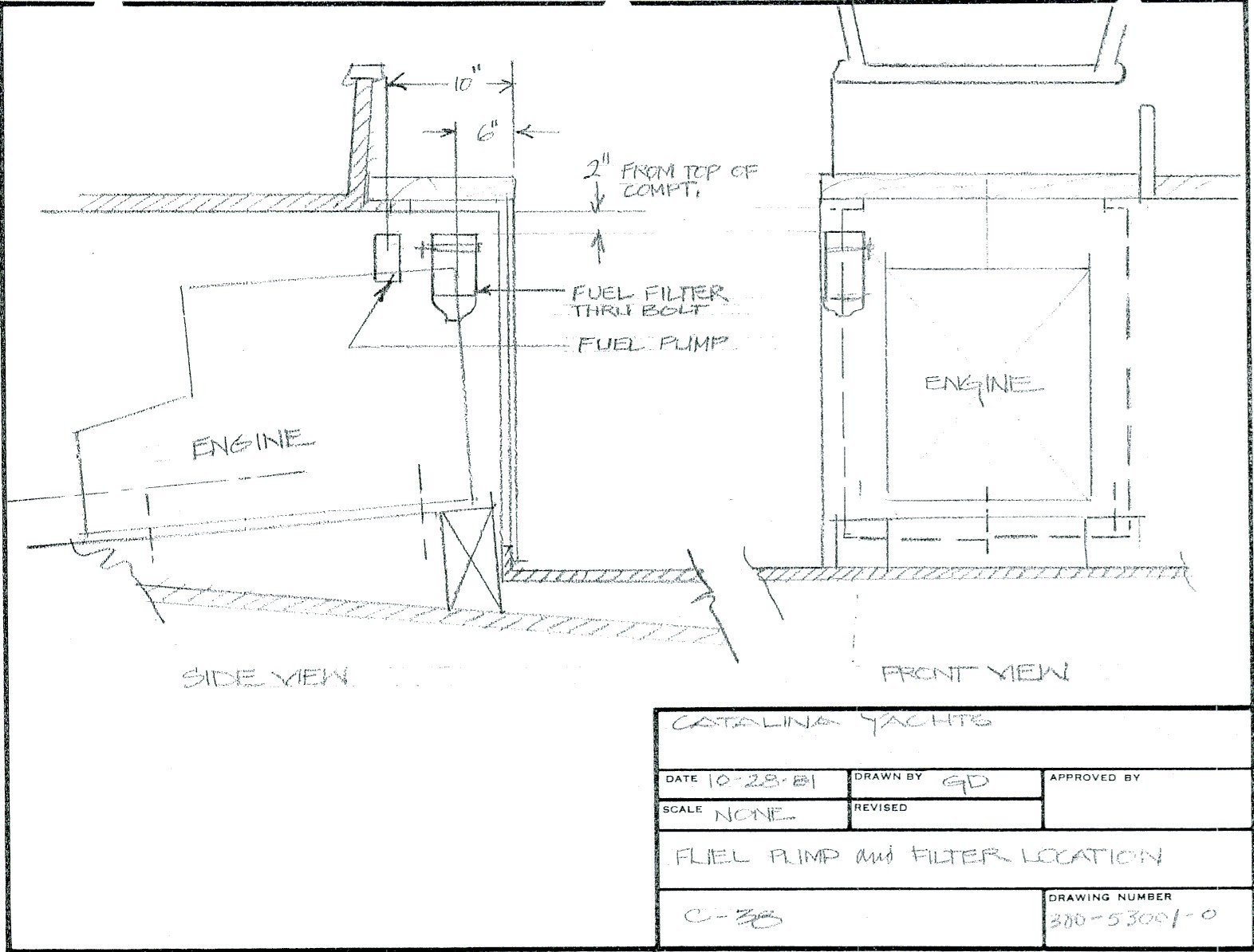

Fuel Pump and Filter

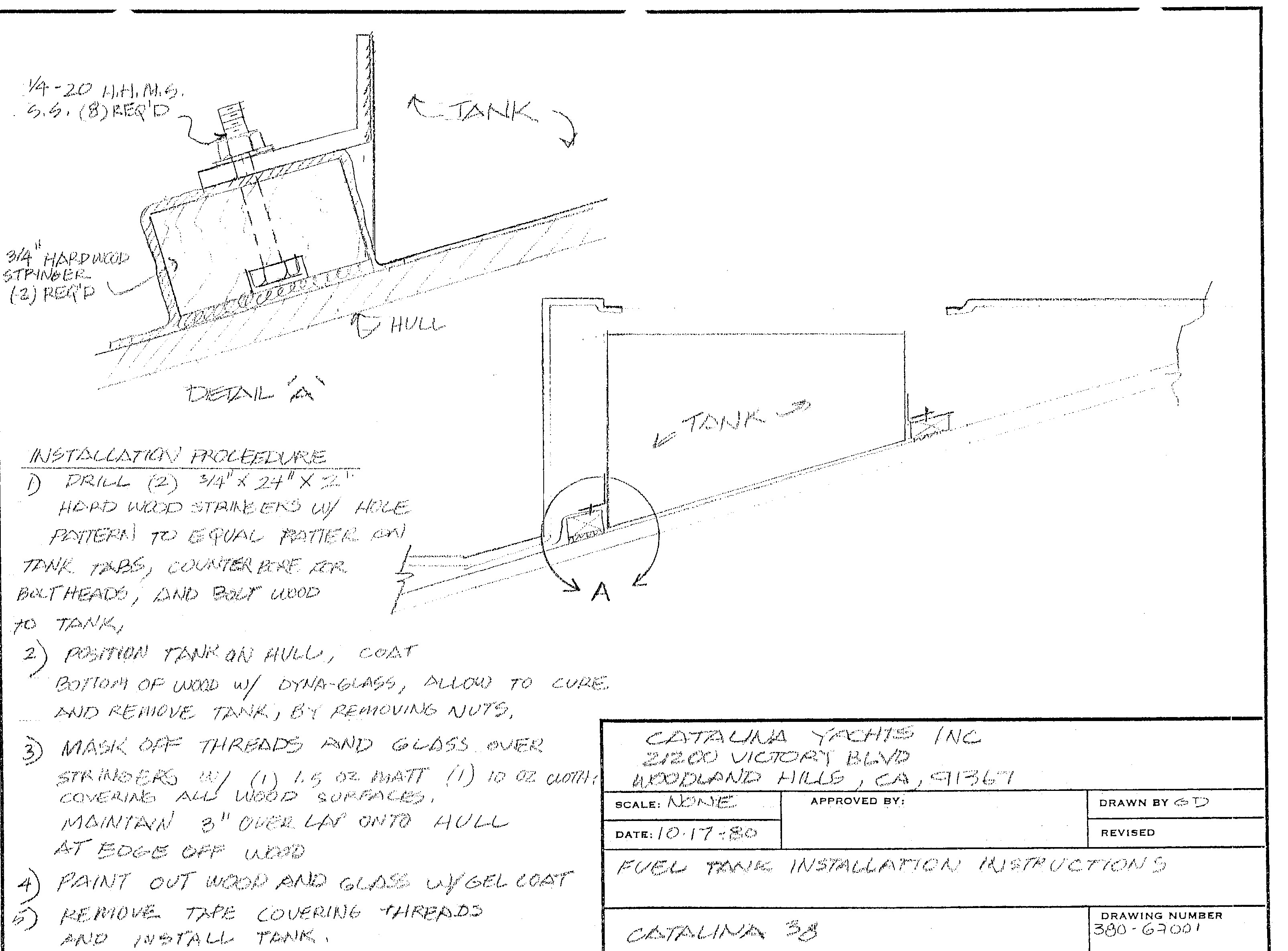

Fuel Tank Installation

Yanmar Engine Bed

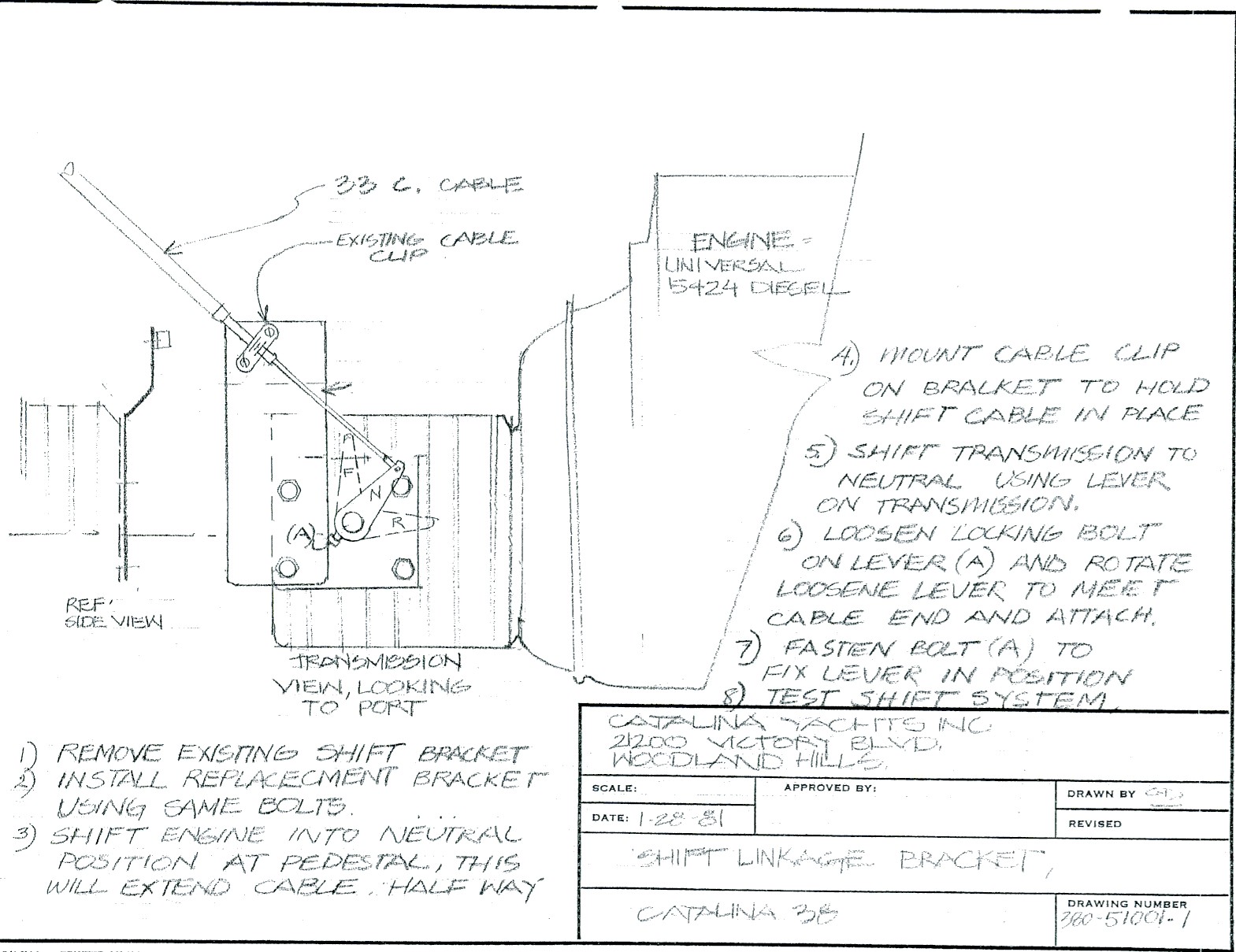

Shifting Linkage

Prop Shaft

Prop Shaft Alignment

Packing Gland Coupling

Prop Strut

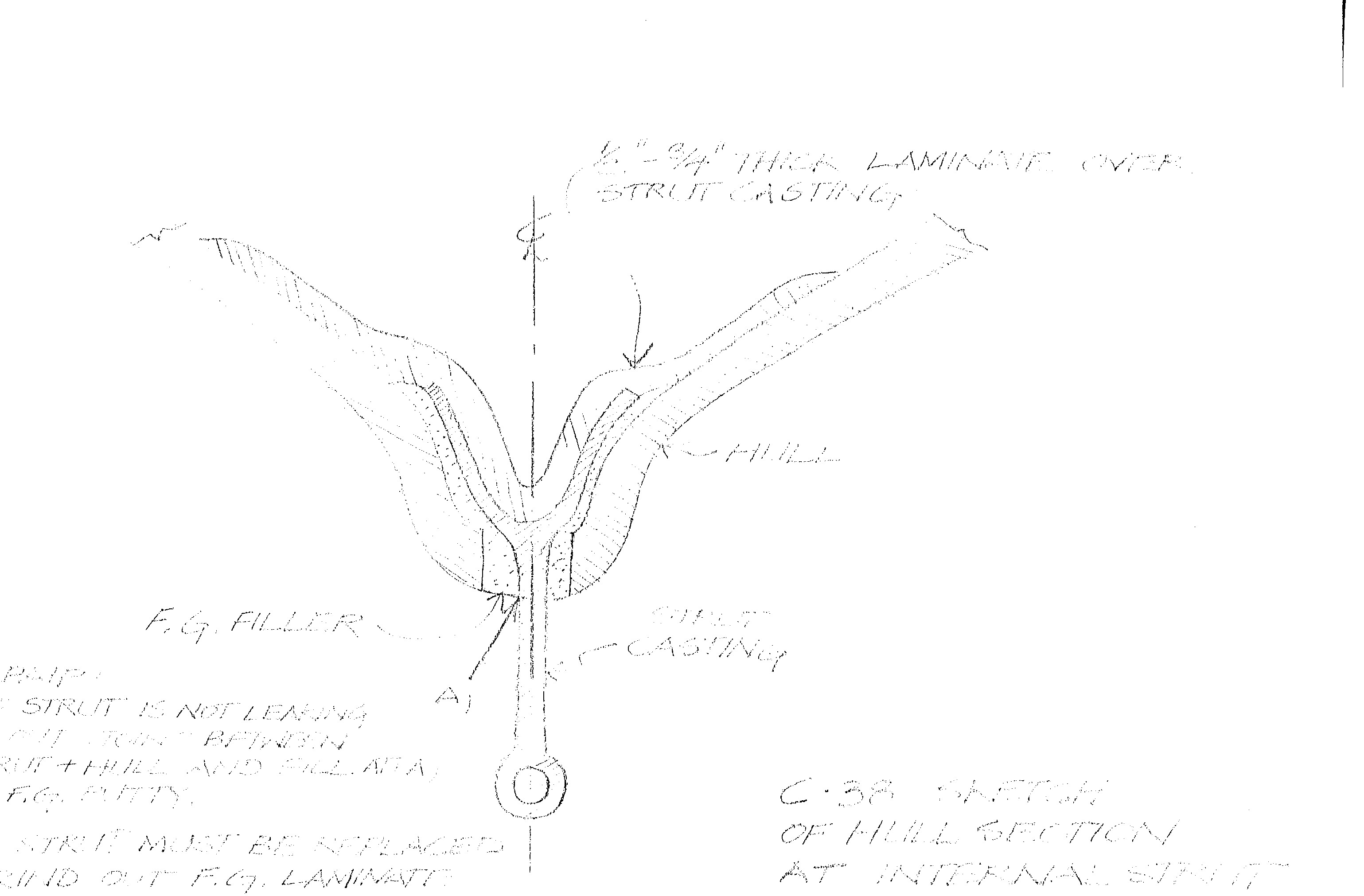

Strut Bedding
