Water System and Thru Hulls

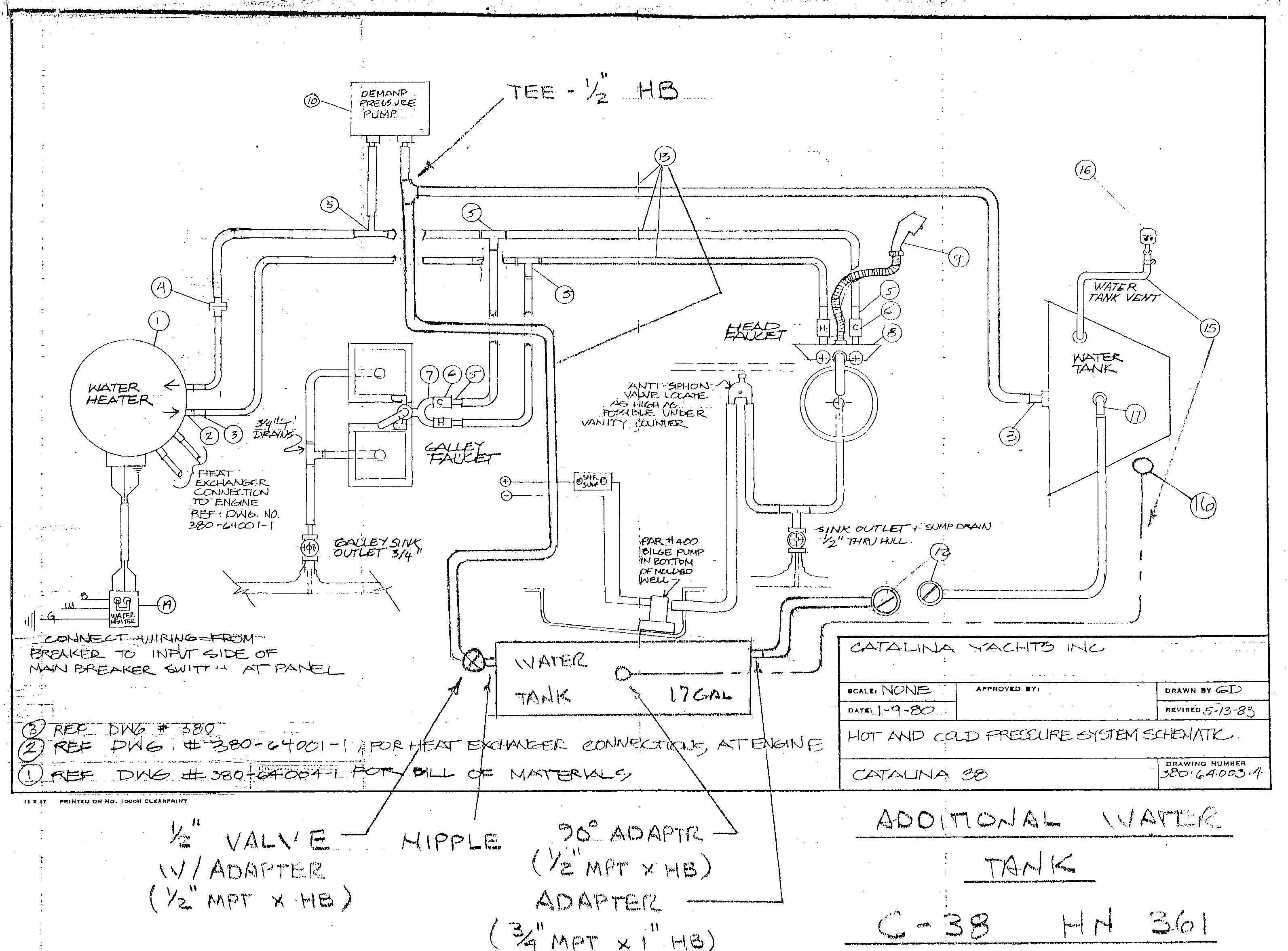

Water System View 1

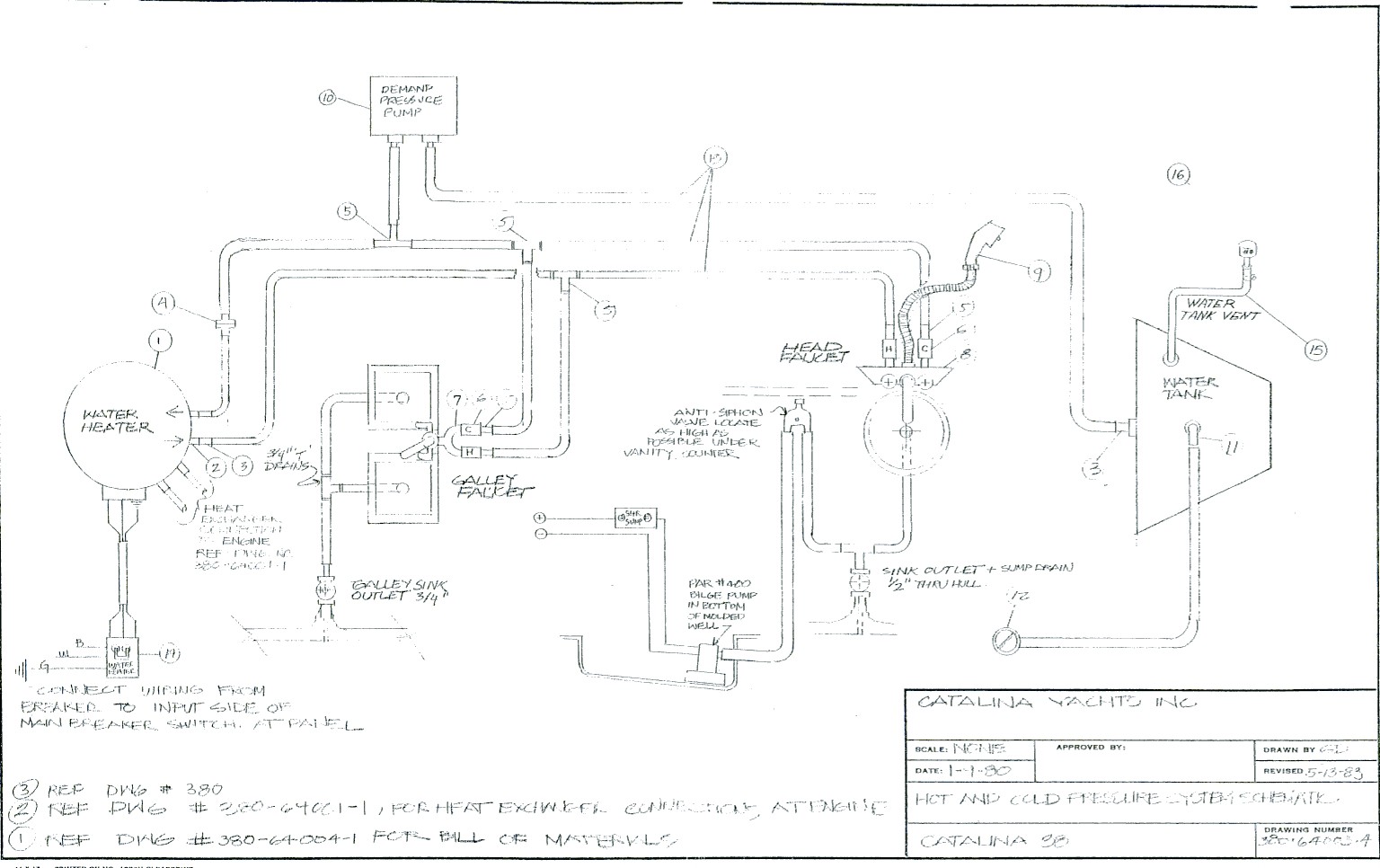

Water System View 2

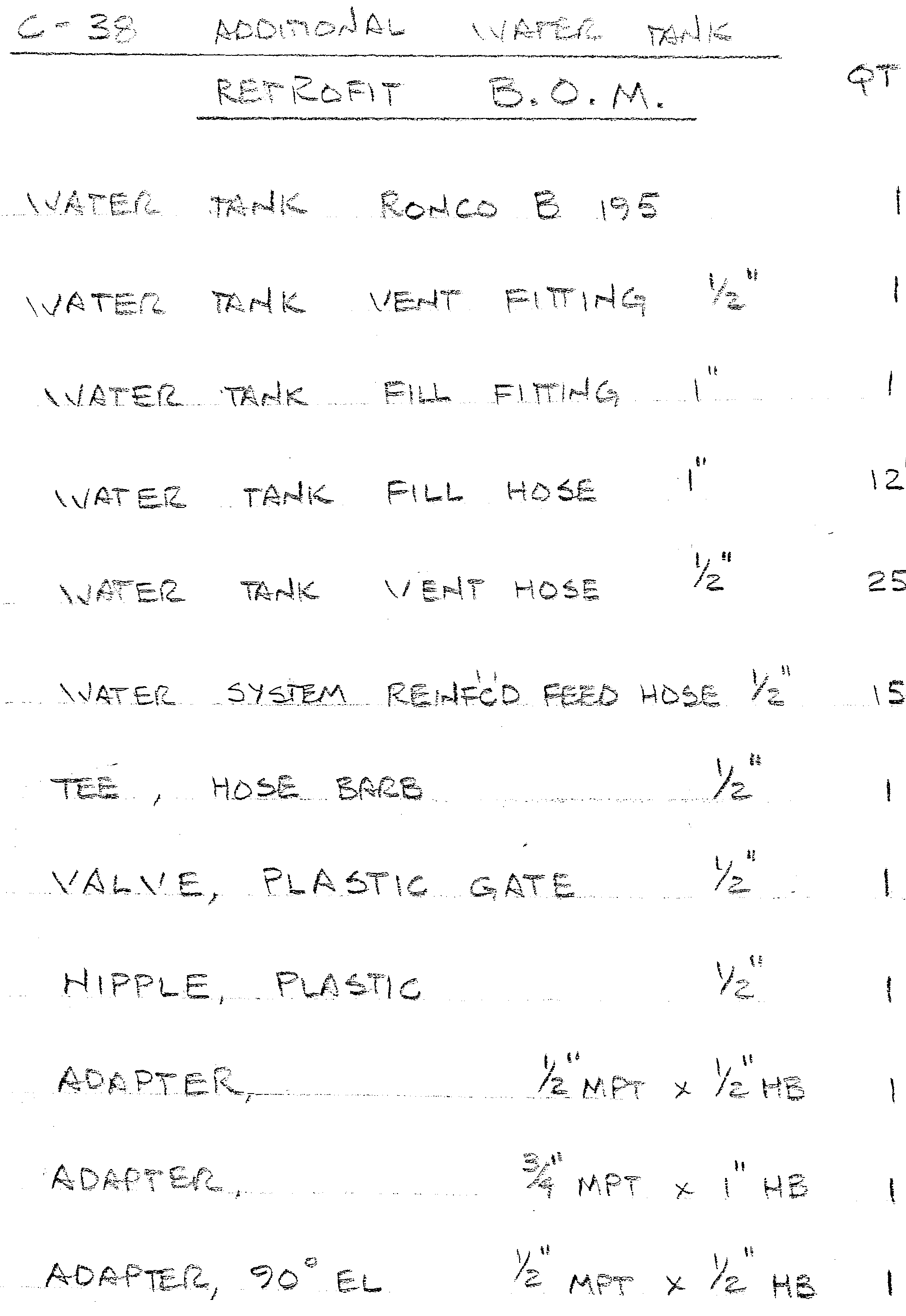

Water Tank Retrofit

Plumbing Parts 1

Plumbing Parts 2

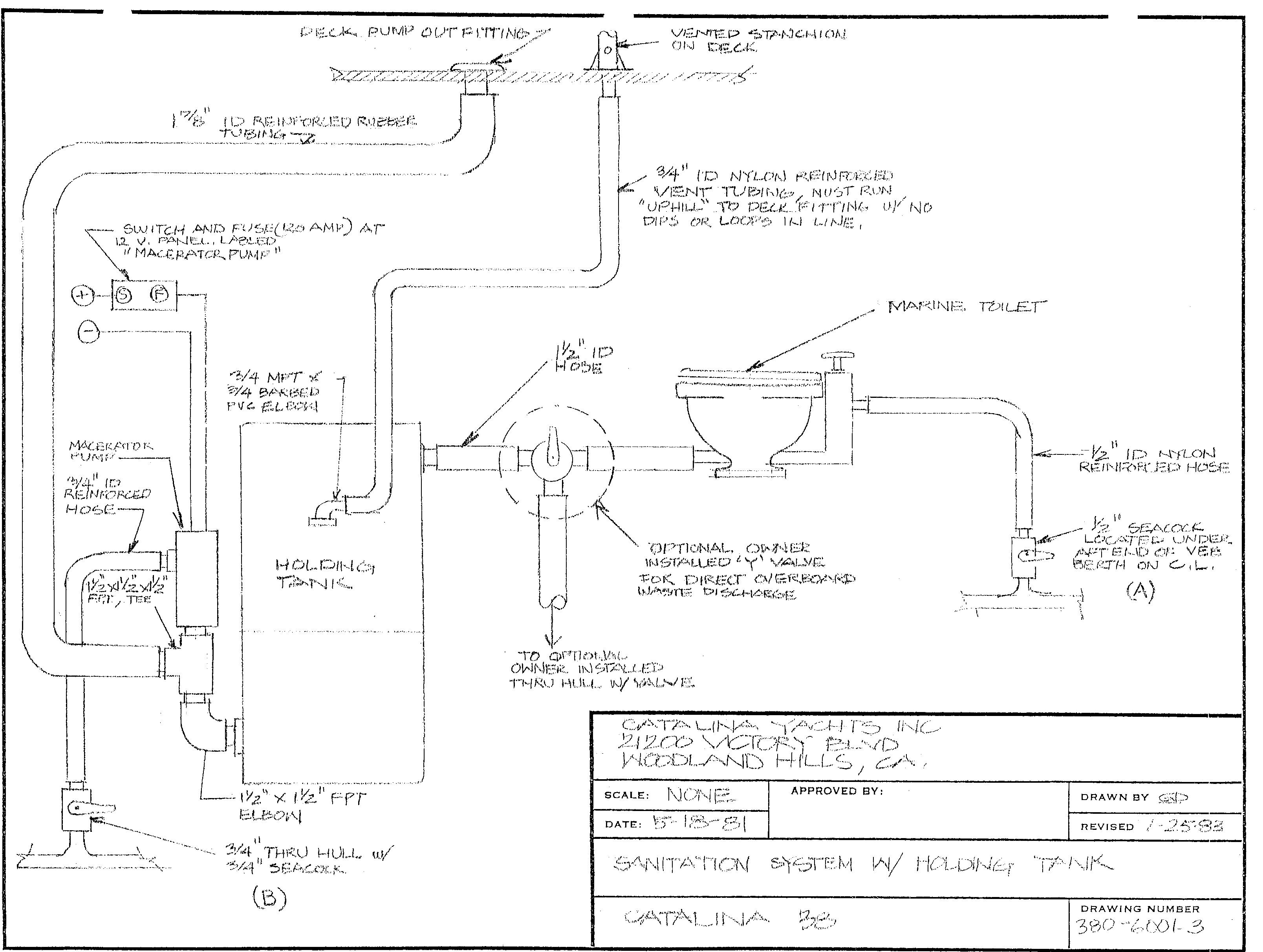

Waste System

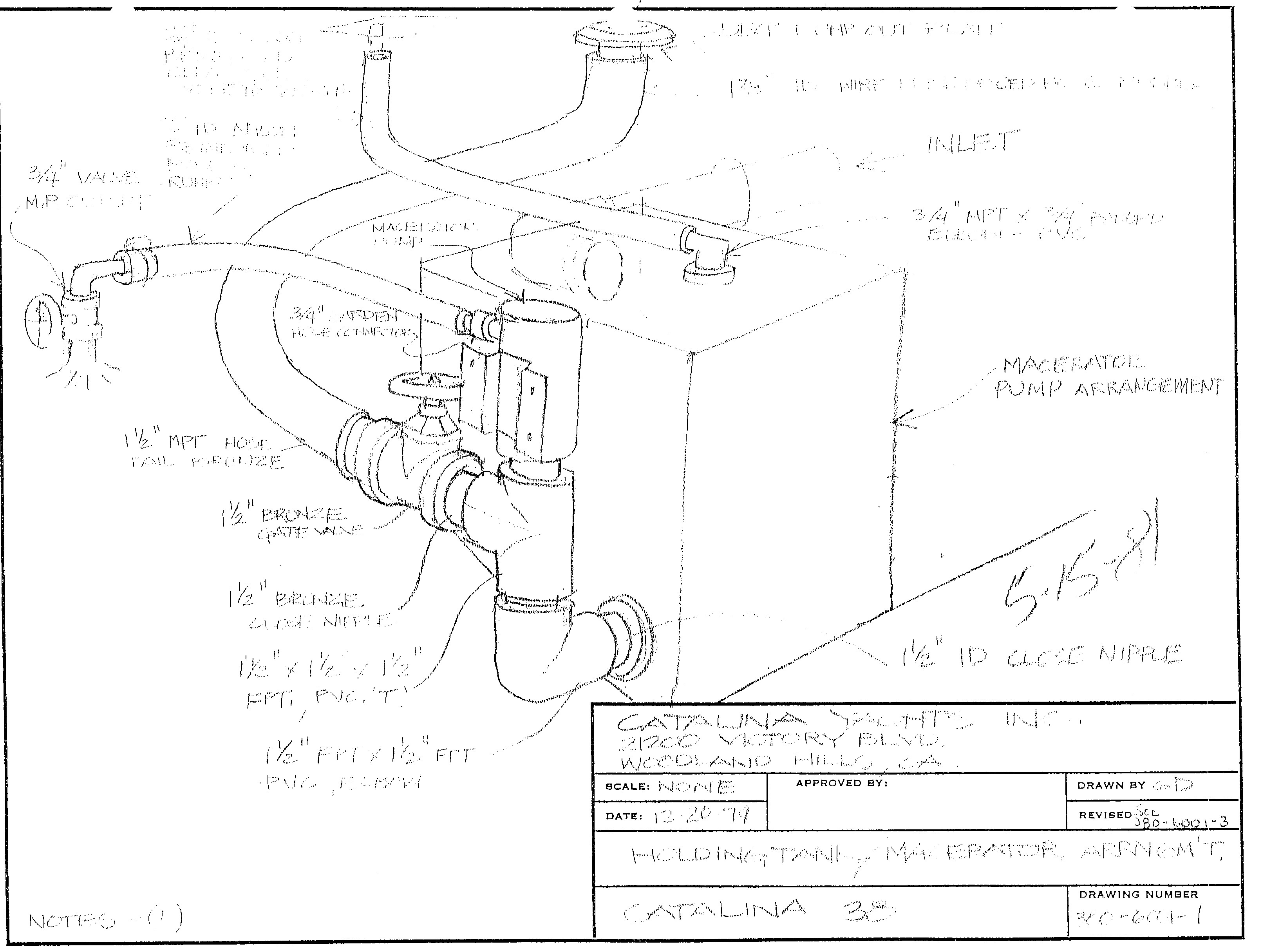

Holding Tank

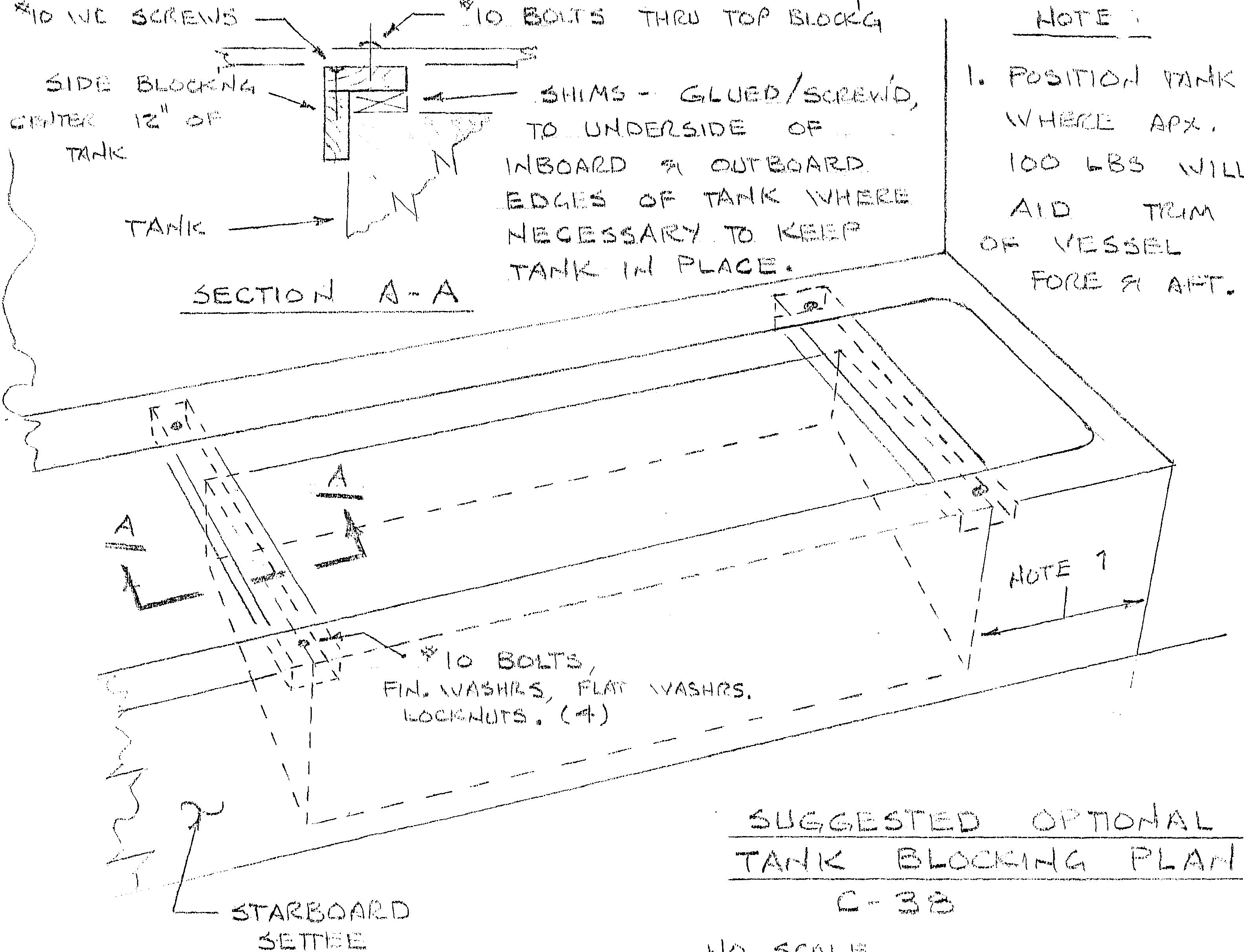

Optional Water Tank Blocking (starboard setee)

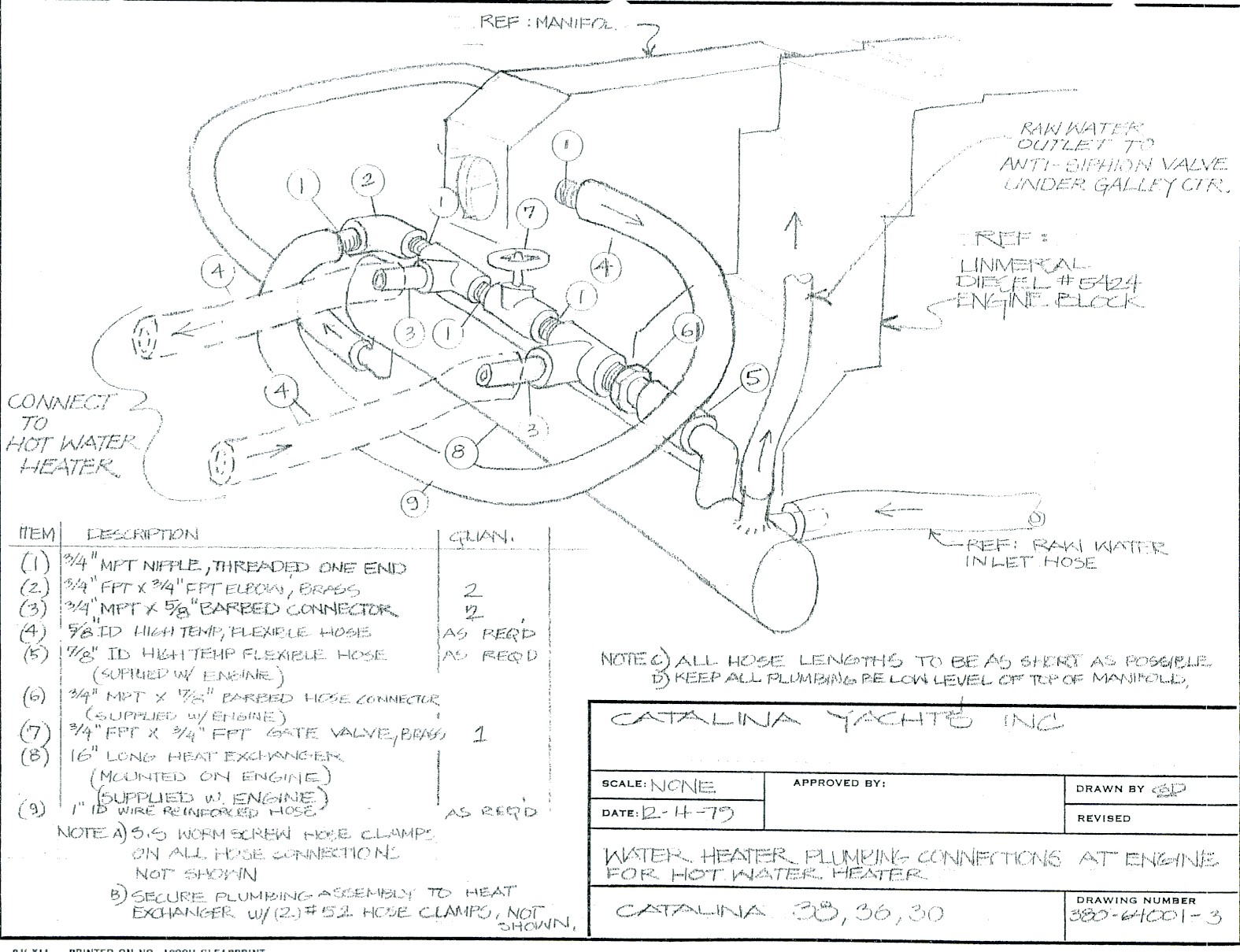

Water Heater

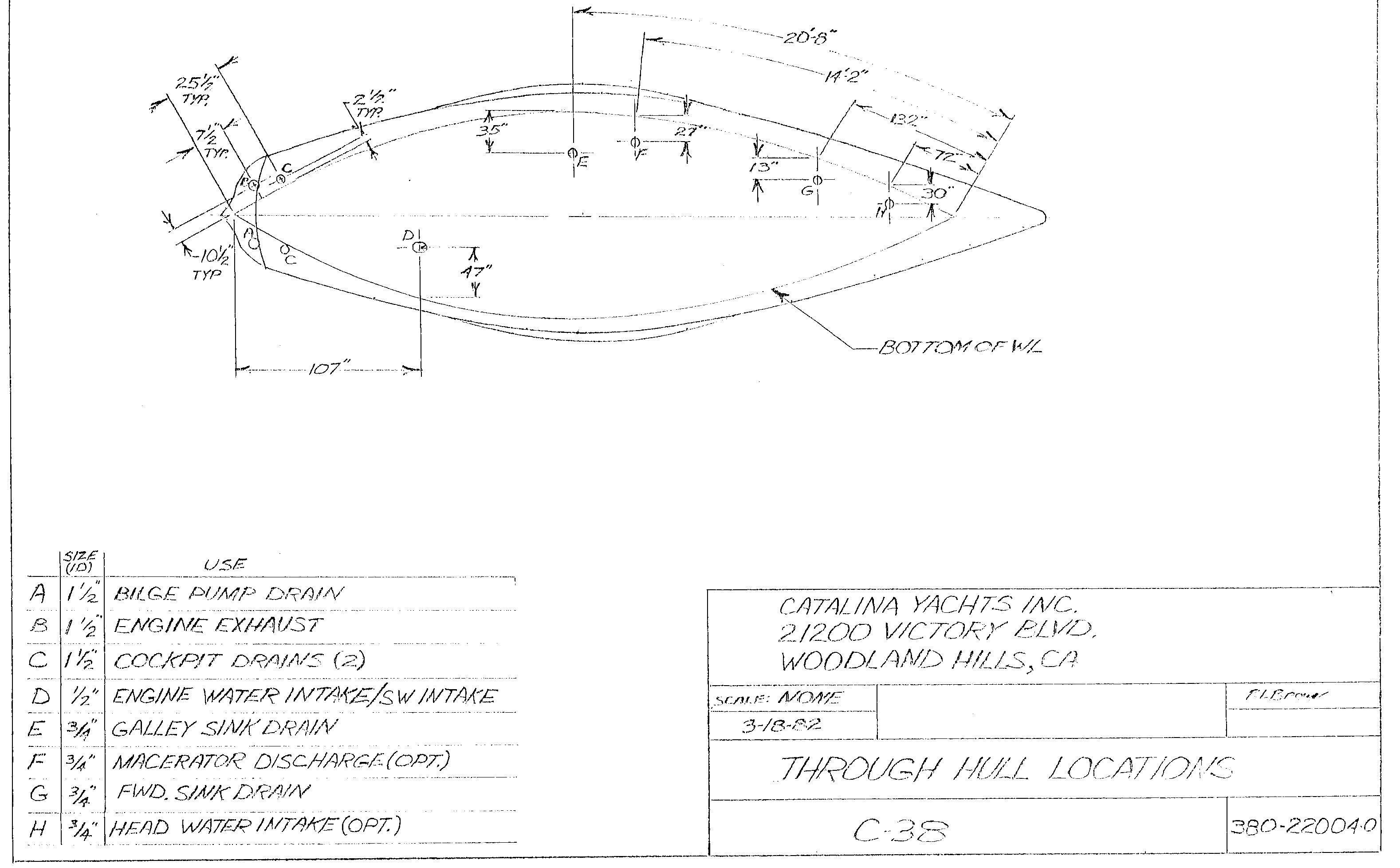

Thru Hull Locations

2 Responses to “Water System and Thru Hulls”

  1. Greg Hart says:

    Plumbing Parts List 1 does not come up. I get a page error.

  2. Roger Taylor says:

    Greg … I had the same experience when I attempted to print the Plumbing Parts List 1 … page error also !

    Roger Taylor 38 #240
